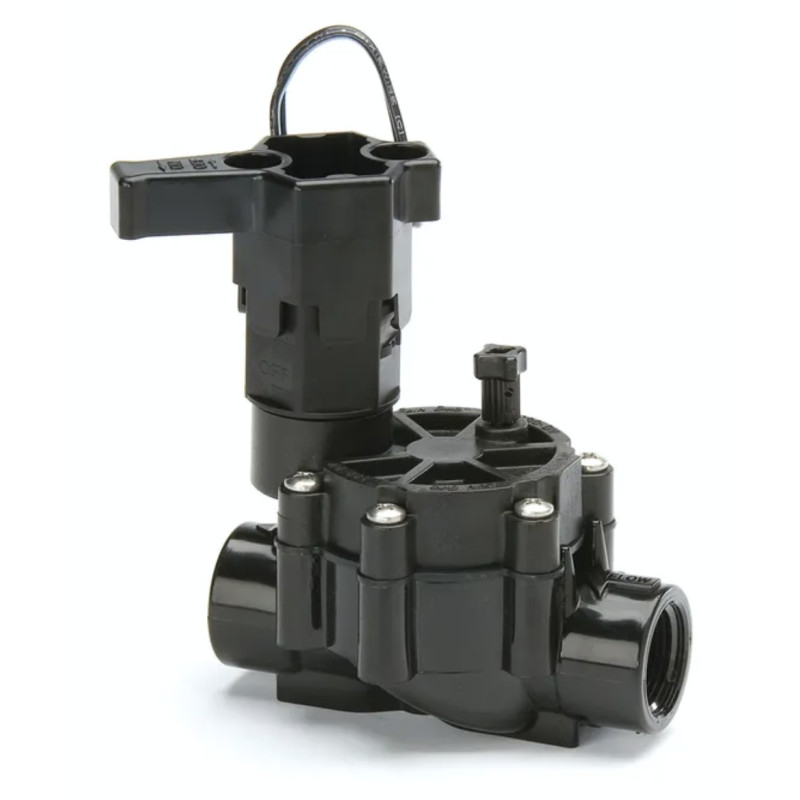

RAIN BIRD 075DV Irrigation Valve

$41.49

RB 075DV - 3/4 in. DV Series Inline Plastic Residential Irrigation Valve - NPT Threads

  • 3/4 in. (20/27) standard in-line configuration
  • Double-filtered pilot-flow design for maximum reliability
  • Balanced-pressure diaphragm for long life
  • External bleed to manually flush system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
  • * Solenoid handle is not included *
Quantity

  • Rain Bird manufactures only the highest quality valves. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required.

    Additional features:

    • All of our valves work with any standard sprinkler timer.
    • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
    • Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream.
    • 1.25 in. (3,2 cm) stainless steel phillips head screws.
    • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
  • Model 75DV
    Valve Size 3/4 in
    Valve Type Inline
    Material Plastic
    Valve Inlet/Outlet Configuration NPT Female x NPT Female Threaded
    Valve Series DV/DVF
    Operating Temperature Up to 110° F (43° C)
    Dimensions

    Height: 4 1/2" (11,4 cm)
    Width: 3 1/3" (8,4 cm)
    Length: 4 3/8" (11,1 cm)
    Electrical Specifications

    24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
    0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
    Solenoid coil resistance: 38 Ohms
    Flow Range 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream.
    Operating Pressure 15 to 150 psi (1,0 to 10,4 bar)
3237 -075DV
