Rain Bird Rain Sensor Wired

$65.50

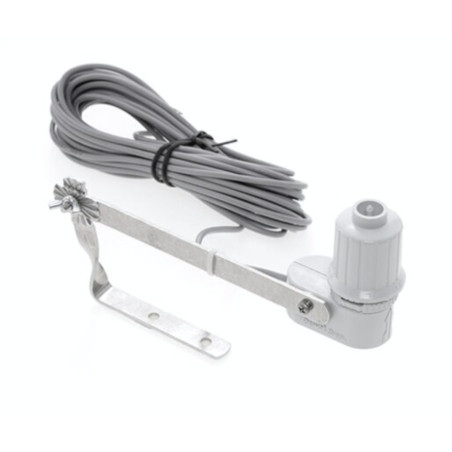

Rain Bird Rain Sensor Wired w/ Mounting Bracket - RSDBEX

Quantity

  • Automatic rain shutoff prevents overwatering due to natural rainfall
  • Flexible, multiple rainfall settings from 1/8" to 3/4" which are quick and easy to adjust with a twist of the dial.
  • Latching hinge maintains alignment
The Rain Bird RSD Series Rain Sensor automatically shuts off your sprinkler system when it rains, so you dont have to worry when youre home or away. The RSD Series Rain Sensor easily connects to most irrigation system controllers. RSD Series Rain Sensors offers flexible, multiple rainfall settings which are quick and easy to adjust with a twist of the dial.

Features
  • High-grade, UV-resistant body on an aluminum bracket easily resists the elements, ensuring hassle-free performance
  • An adjustable side vent ring allows the sensor to dry out once it collects water
  • Moisture sensing disks work in a variety of climates
  • Wire: 25 ft. (7,6 m) length of 20, 2 conductor UV resistant extension wire
Specs

Dimensions:

RSD-BEx
Overall Length: 6.5" (16,5 cm)
Overall Height: 5.4" (15,7 cm)
Bracket hole pattern: 1.25" (3,2 cm)

Electrical Specifications

  • Application: suitable for low voltage 24VAC control circuits and 24 VAC pump start relay circuits (not recommended for use with high voltage pump start, pump start relay circuits or devices).
  • Switch electrical rating: 3A @ 125/250 VAC.
  • Capacity: Electrical rating suitable for use with up to ten 24VAC, 7VA solenoid valves per station, plus one master valve.
  • Wire: 25 (7,6 m) length of #20, 2 conductor UV resistant extension wire.
  • UL, cUL listed; CE, C-Tick approved.
8156 - RSDBEX
