External Aquarium Filter - For a Simplified Filtration

• Compact filter with large filter surface – Model 100 offers 2-stage filtration: biological and mechanical filtration; Models 200-300 offer 3-stage filtration: biological, mechanical, and chemical filtration. Multi-staged filtration provides clear, healthy water and a high surface area for beneficial bacteria to colonize.

• No mess maintenance – Locking features are integrated into the inlet/outlet connection unit to ensure no accidental spillage or messy maintenance

• Adjustable flow control – Flow can be adjusted for the inlet and outlet

• Quiet operation – Sound dampening design

• Easy to open – EasyClick opening mechanism

• Easy to carry – Features carrying handle (Models 200-300 only)

• What’s in the Box – Aquarium Filter with filter media, intake tube with inlet strainer, water distributor nozzle, spray bar, inlet and outlet adapters with flow control, tubing, fittings, removable base and power cables

• Made in Italy, backed by German engineering

• Fresh and marine water compatible

• UL certified filter

• 3 year warranty

• Oase FiltoSmart 100

  Dimensions	8 x 5.5 x 10 in.
  Net Weight	4.4 lbs.
  Rated Voltage	120V / 60 Hz
  Power Consumption	11W
  Power Cord Length	6 ft.
  Max. Flow Rate	160 GPH
  Max. Head Height	4.6 ft.
  Connection	1/2 in.
  Tubing Length	8 ft.
  Filter Volume	0.34 gallons
  Pre-filter Volume	0.18 gallons
  Suitable for Max. Aquarium Volume	30 gallons

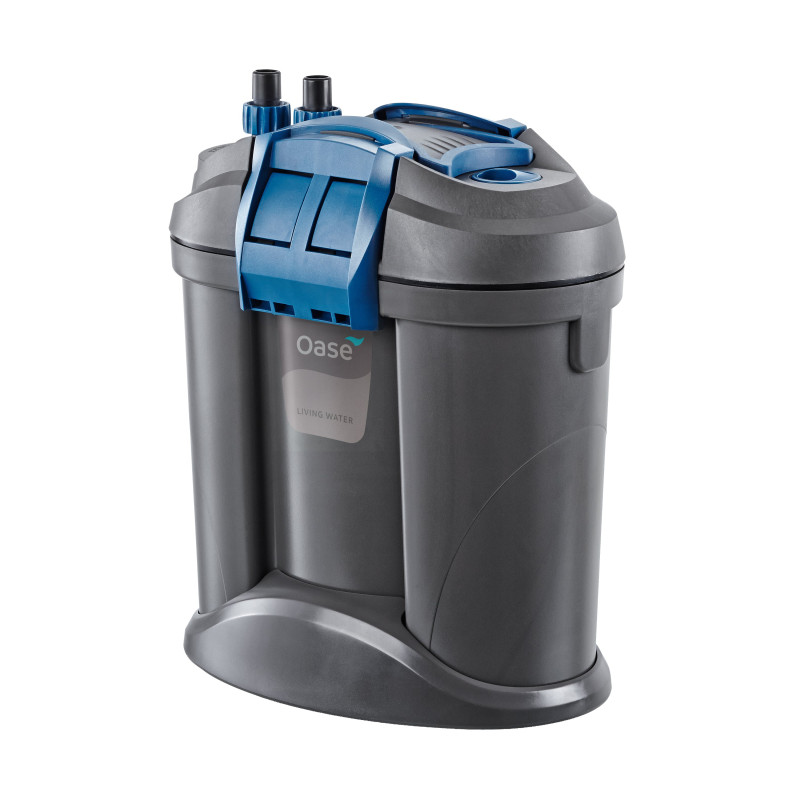

  Oase FiltoSmart 200

• Dimensions	11 x 7 x 13.3 in.
  Net Weight	9 lbs.
  Rated Voltage	120V / 60 Hz
  Power Consumption	17W
  Power Cord Length	6 ft.
  Max. Flow Rate	210 GPH
  Max. Head Height	3.3 ft.
  Connection	2/3 in.
  Tubing Length	8 ft.
  Filter Volume	1.1 gallons
  Pre-filter Volume	0.4 gallons
  Suitable for Max. Aquarium Volume	55 gallons

  Oase FiltoSmart 300

  Dimensions	11 x 7 x 16.9 in.
  Net Weight	10.6 lbs.
  Rated Voltage	120V / 60 Hz
  Power Consumption	23W
  Power Cord Length	6 ft.
  Max. Flow Rate	260 GPH
  Max. Head Height	5 ft.
  Connection	2/3 in.
  Tubing Length	8 ft.
  Filter Volume	1.7 gallons
  Pre-filter Volume	0.4 gallons
  Suitable for Max. Aquarium Volume	80 gallons

The FiltoSmart series uses filter foams of differing pore densities and filter media for optimal water quality and clarity. Each filter has its own replacement filter foam set. FiltoSmart 100-300 models use ceramic filter media and FiltoSmart 200-300 models also uses carbon filter media. Timing to replace the filter media varies upon aquarium size, number of fish and plants, and a decline in filter performance. It is best to only replace the ceramic filter media when you do a complete tank restart as to not disturb the beneficial biological load.
